Panoramic Padbol Court

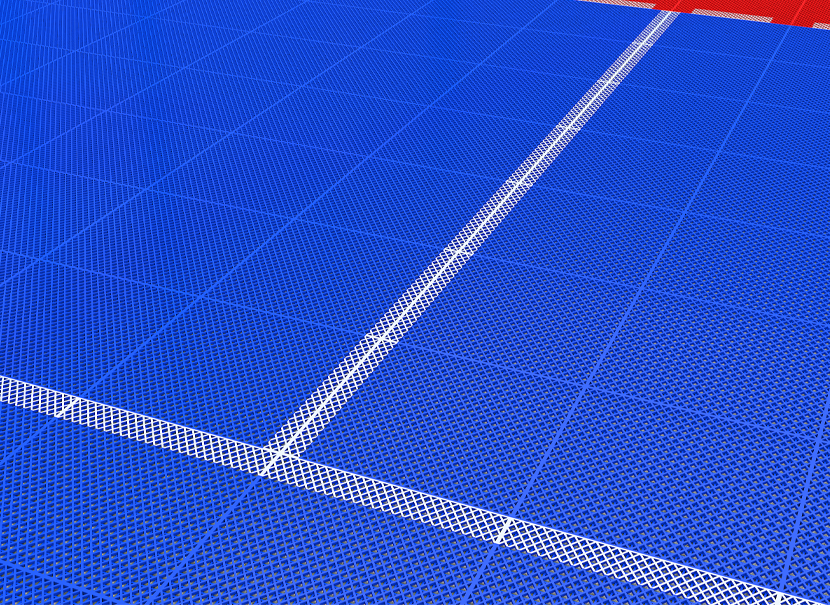

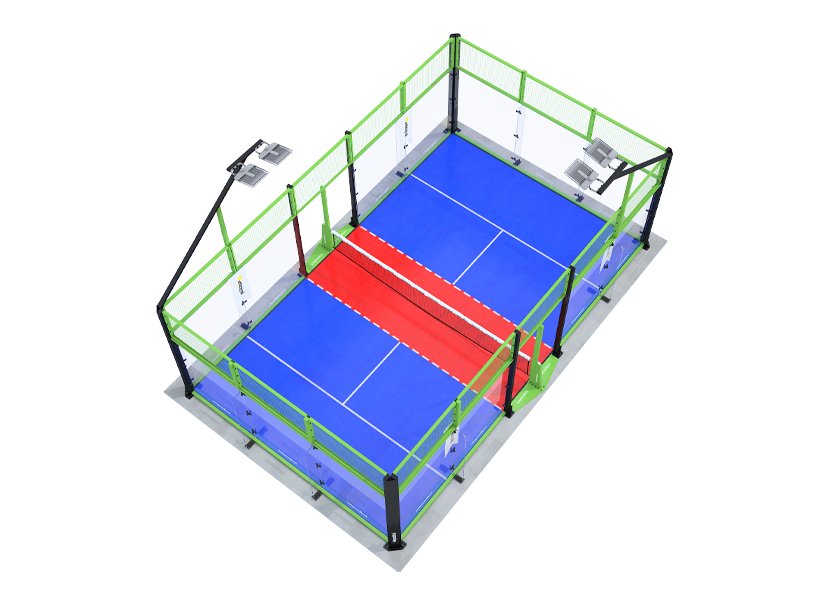

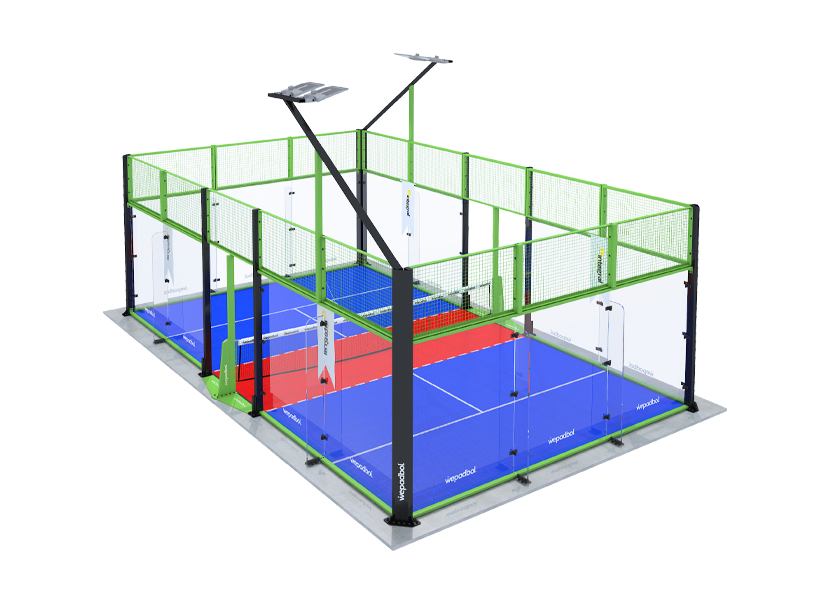

Panoramic Padbol Court is a 6x10 meter court designed with a panoramic steel structure, tempered glass, and galvanized wire mesh panels. Built with modular PVC or optional synthetic turf flooring, it provides maximum visibility and durability. Suitable for both indoor and outdoor use, it offers a safe, stylish, and high-performance play experience.
Grass Types Used : Padel Turf Red
General Features
Technical Information
Gallery
Frequently Asked Questions
Get Offer
The Panoramic Padbol Court provides a modern playing experience with its frameless wide glass panels, durable steel structure, and high-performance sports flooring. Its stylish appearance, fast installation, and low maintenance make it an ideal choice for professional facilities.
| TECHNICAL INFORMATION | |||||||
| Court Dimensions | Width: 6 meters | Length: 10 meters | |||||
| Infrastructure | Width: 40 cm - Height: 50 cm | C30 beton | |||||
| Infrastructure - Field Concrete | C20 field concrete with 15 cm thick steel mesh | ||||||
| Water Drainage | Water is discharged from the surface by giving a 0.5% slope to the concrete floor in one direction. | ||||||

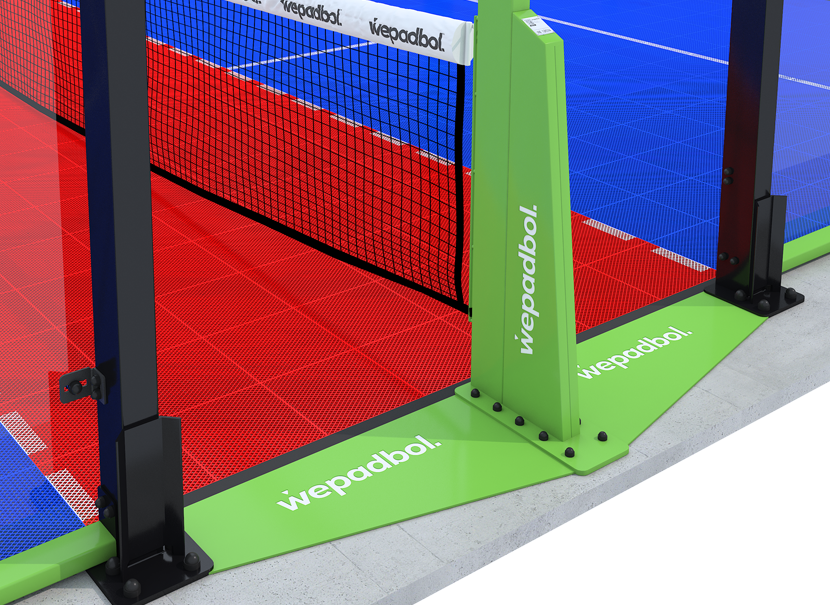

| Steel Construction | Double Corner Columns: 80 x 120 x 3 mm Beams: 40 x 80 x 2.5 mm / Modular bolted system | Intermediate Columns: 80 x 120 x 3 mm / Height: 3.50 m | |||||
| Steel Mesh | Mesh spacing: 50 mm * 50 mm | Wire Thickness: 4 mm | |||||
| Steel Surface Coating | Electro Galvanized Coating | Electrostatic Powder Coating | |||||
| Resistance | Maximum Wind Speed: 70 km/h | ||||||
| Glass | 12 mm Tempered Glass | ||||||
| Lighting | 4 x 200 W LED Projectors | ||||||
| Synthetic Grass (Optional) | 11 - 13 mm FB - MFF - TXT Synthetic Grass | ||||||
| Equipment | Padbol Goalposts and Net | ||||||
