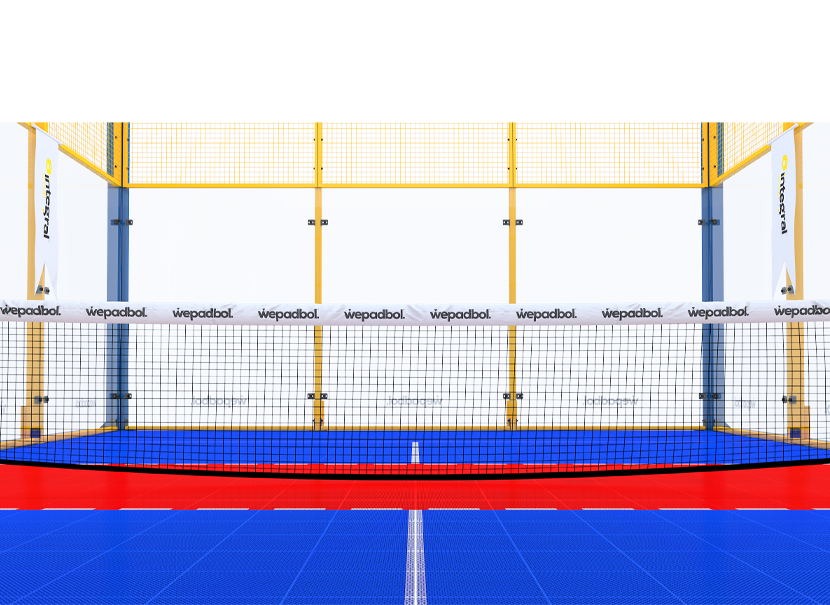

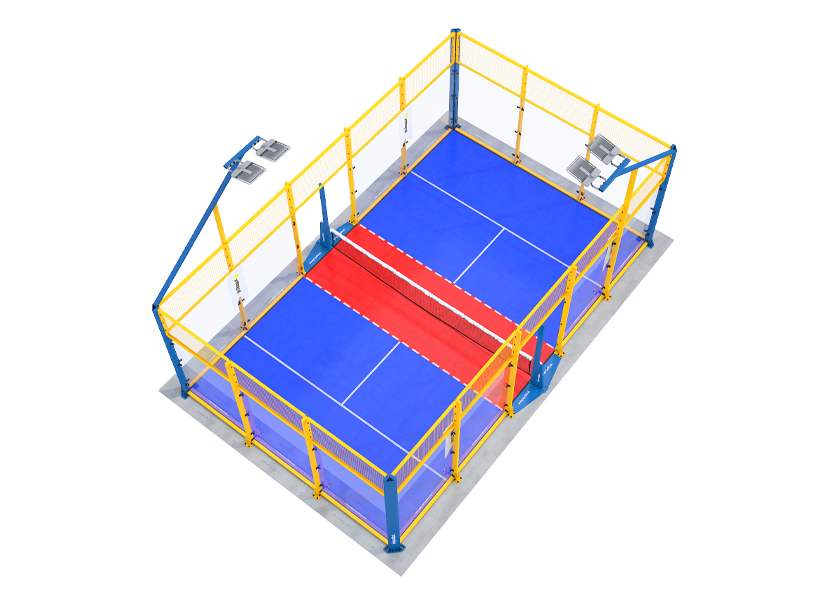

Origin Padbol Court

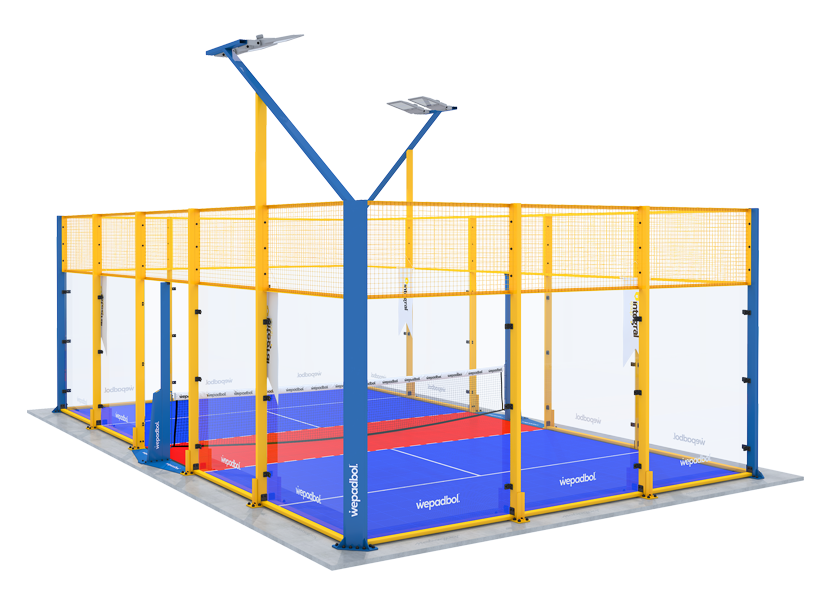

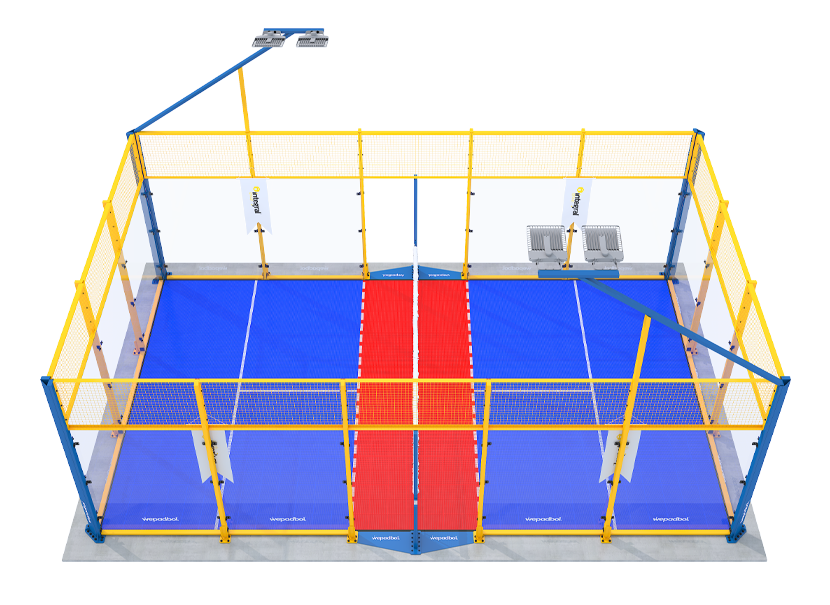

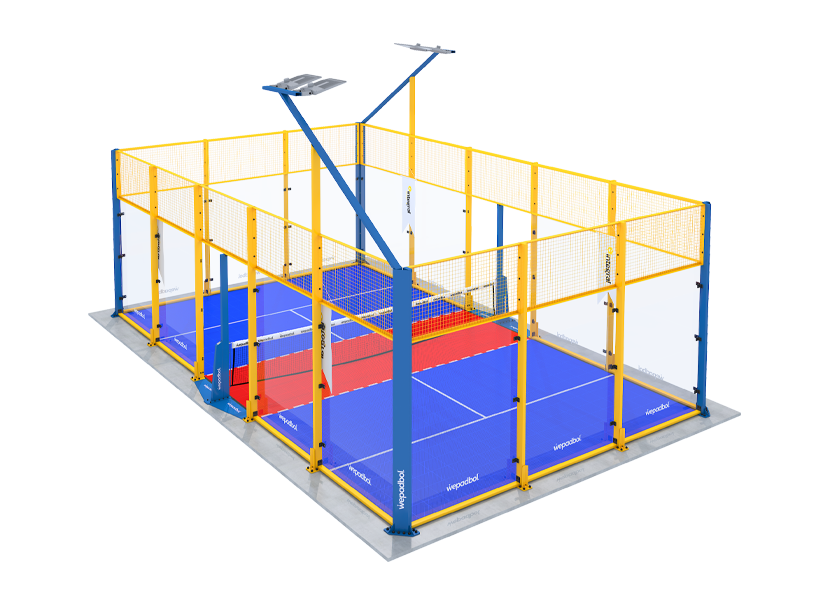

Origin Padbol Court is a 6x10 meter professional court designed with modular PVC flooring, steel construction, and tempered glass panels. Manufactured according to international padbol standards, it ensures long-lasting durability and strength. Suitable for both indoor and outdoor use, it offers comfort, safety, and high performance for an exceptional padbol experience.

Get Offer PDF Document

Grass Types Used : Padel Turf Red

General Features

Technical Information

Gallery

Frequently Asked Questions

Get Offer

Origin Padbol Court delivers high performance with its durable steel structure, tempered glass panels, and non-slip sports flooring. Its low maintenance needs, fast installation, and international-standard design make it an ideal solution for modern sports facilities.

TECHNICAL INFORMATION
Court Dimensions	Width: 6 meters	Length: 10 meters
Infrastructure - Concrete Beam	Width: 40 cm - Height: 50 cm	C30 beton
Water Drainage	Water is discharged from the surface by giving a 0.5% slope to the concrete ﬂoor in one direction.

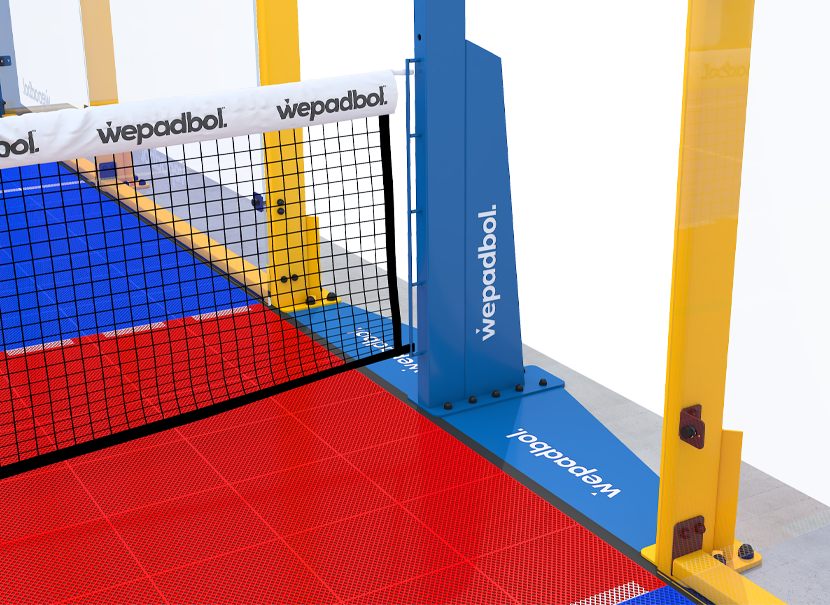

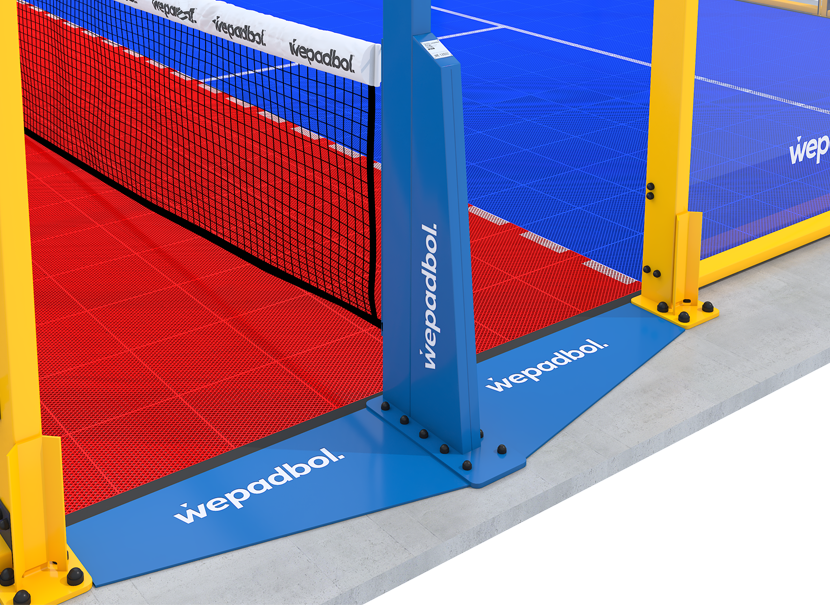

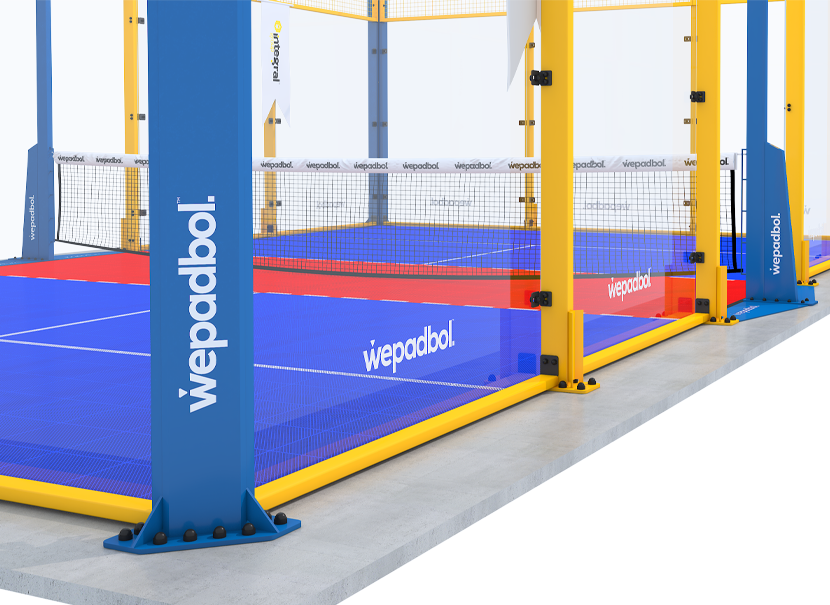

Steel Construction	Double Corner Columns: 120 x 60 x 3 mm Beams: 40 x 80 x 2.5 mm Modular bolted system	Intermediate Columns: 120 x 60 x 3 mm Height: 3.50 m
Steel Mesh	Mesh spacing: 50 mm * 50 mm	Wire Thickness: 4 mm
Steel Surface Coating	Electro Galvanized Coating	Electrostatic Powder Coating
Resistance	Maximum Wind Speed: 90 km/h
Glass	10 mm Tempered Glass
Lighting	4 x 200 W LED Projectors
Synthetic Grass (Optional)	11 - 13 mm FB - MFF - TXT Synthetic Grass

Origin Padbol Court

1. Which standards is the Origin Padbol Court manufactured according to?

The Origin model is designed according to the official game rules and measurements of the Padbol sport. The steel construction, tempered glass, net, and modular PVC flooring meet international standards in terms of safety and game performance.

2. Is the Origin Padbol Court suitable for outdoor or indoor use?

The Origin Padbol court is designed for outdoor use. Features such as galvanized coating, electrostatic powder paint, UV-resistant optional synthetic turf, and 90 km/h wind resistance fully support outdoor usage.

3. What are the technical dimensions and height of the Origin model?

The dimensions of the Origin court are defined as 10 m in length and 6 m in width. The construction height is 3.50 meters, and the system is fully assembled using a modular bolted structure.

4. With which flooring system is the Origin Padbol Court delivered?

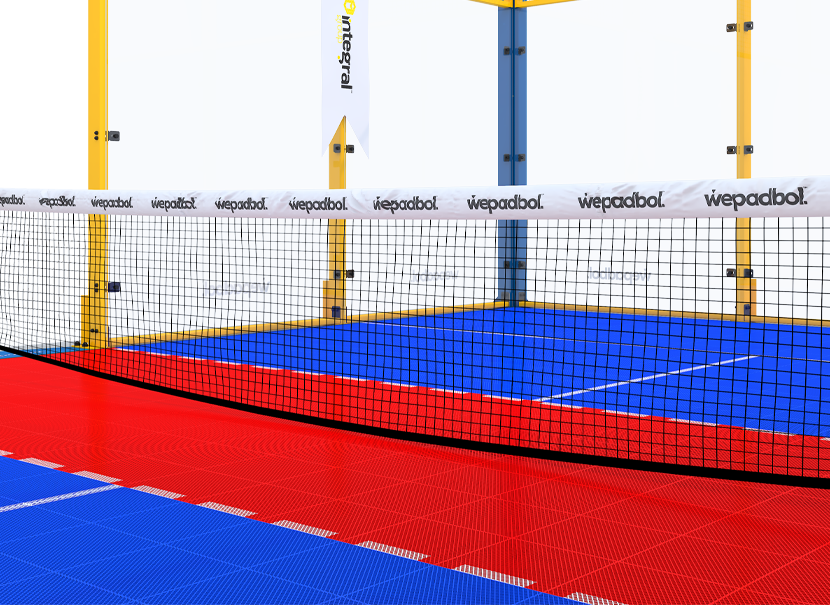

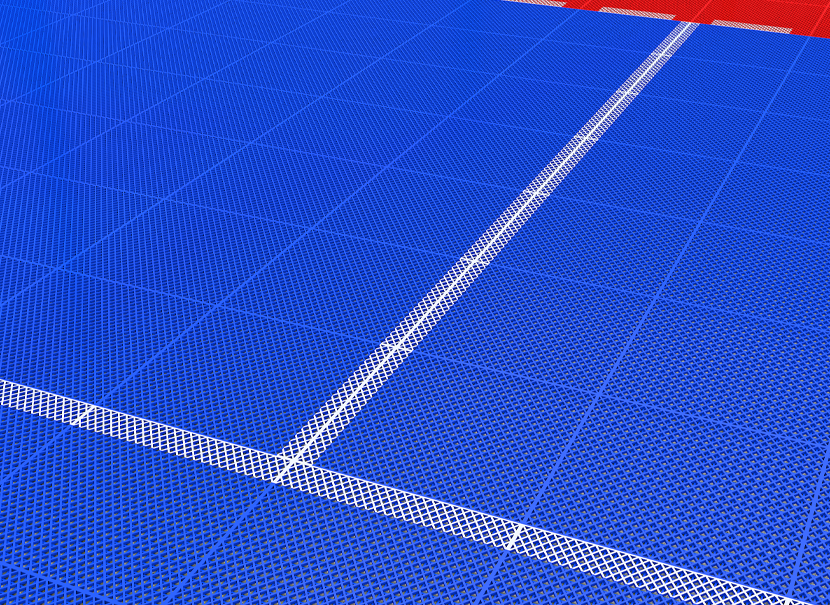

The standard flooring system of the Origin court is Modular PVC sports flooring (30×30 cm interlocking). This system provides fast drainage, high slip resistance, and high impact durability. Upon request, 11–13 mm UV-enhanced synthetic turf can also be applied.

5. How long does the production and installation process of the Origin Padbol Court take?

Average production and installation duration: Infrastructure: 2 days Steel Construction Manufacturing: 15 days Steel Construction Installation: 5 days Glass Manufacturing: 7 days Glass Installation: 2 days Lighting Installation: 1 day Modular PVC Flooring Installation: 1 day As some processes can run simultaneously depending on the project flow, the total delivery time is between 2–4 weeks.
